HTML5 and its future - Part I

Created by Leijun Yang

Who is this guy?

  • 会编程序的猪
  • http://weibo.com/u/1954880174
  • https://github.com/sdd330


Is this about Native vs HTML5?

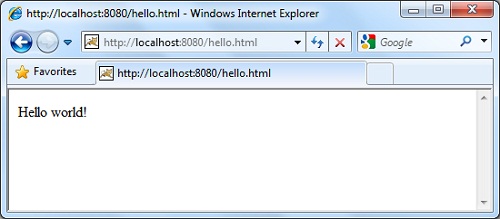

Let's talk about my first web page

Not so bad ...

Old generations websites

  • HTML pages build by web designers one by one
  • Read-only, non-interactive
  • No multimedia support (like sounds or videos)
  • Not possible to build applications like games
  • ...

How we build the next generation web?

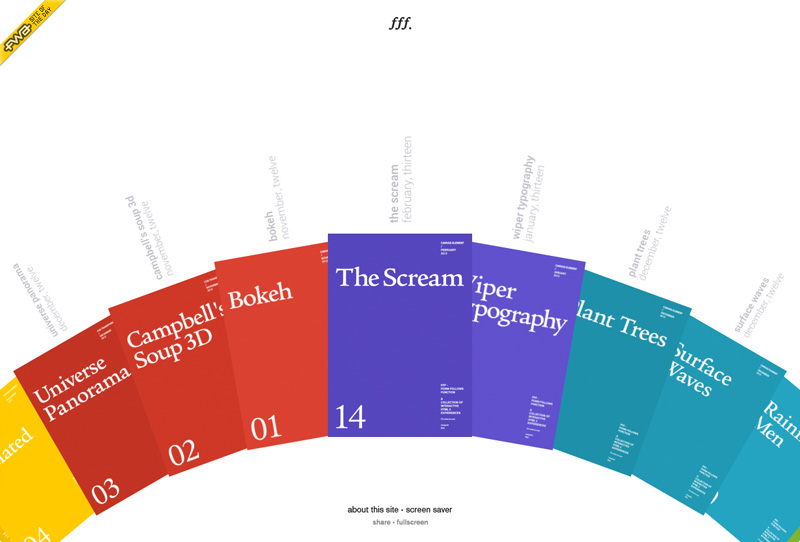

http://fff.cmiscm.com/

HTML5 technologies you’ve heard of?

HTML5 technologies

  • Semantics
  • 2D/3D Graphics & Effects
  • Styling
  • Device Access
  • Multimedia
  • Connectivity
  • Offline & Storage
  • Performance & Integration

Agenda - Part I

  • Semantics
  • 2D/3D Graphics & Effects
  • Styling
  • Device Access

Semantics

  • New semantic elements

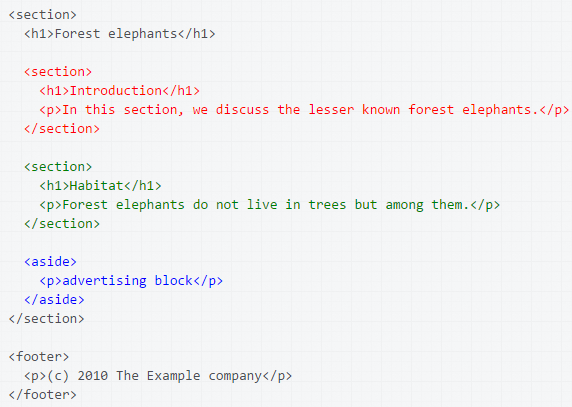

Semantic Elements

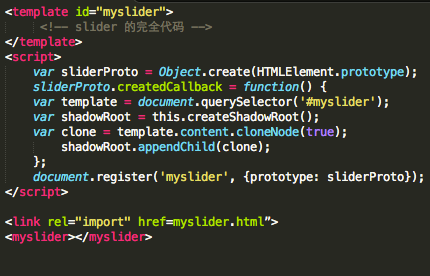

Template Element

2D/3D Graphics & Effects

  • Canvas
  • WebGL

Canvas smiley


						var canvas = document.getElementById('canvas');
						var ctx = canvas.getContext('2d');
						ctx.beginPath();
						ctx.arc(75,75,50,0,Math.PI*2,true); // Outer circle
						ctx.moveTo(110,75);
						ctx.arc(75,75,35,0,Math.PI,false);   // Mouth (clockwise)
						ctx.moveTo(65,65);
						ctx.arc(60,65,5,0,Math.PI*2,true);  // Left eye
						ctx.moveTo(95,65);
						ctx.arc(90,65,5,0,Math.PI*2,true);  // Right eye
						ctx.stroke();

Demo

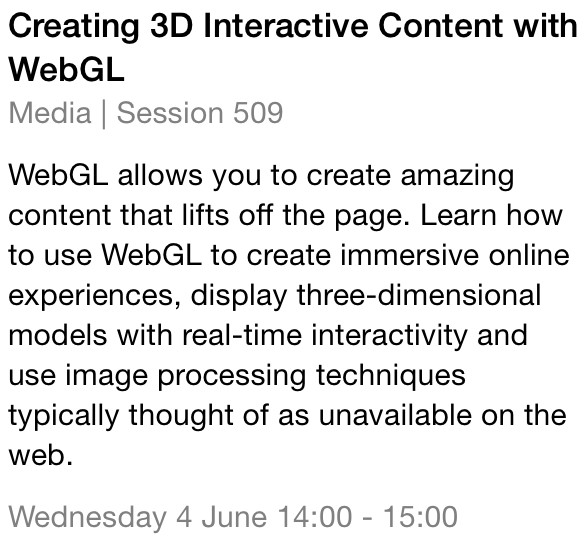

WebGL

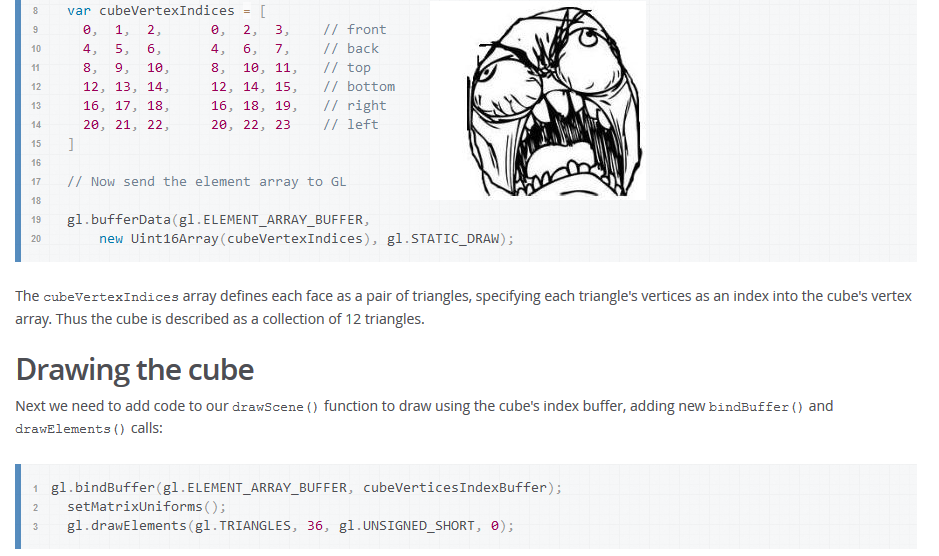

WebGL cube

https://developer.mozilla.org/en-US/docs/Web/WebGL

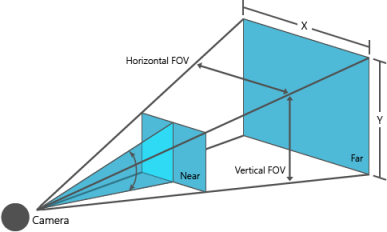

three.js


							var scene = new THREE.Scene(); 	// Creating the scene
							var aspect  = window.innerWidth / window.innerHeight;
							var camera = new THREE.PerspectiveCamera( 75, aspect, 0.1, 1000 );
							var renderer = new THREE.WebGLRenderer();
							renderer.setSize( window.innerWidth, window.innerHeight );
							document.body.appendChild( renderer.domElement );
							var geometry = new THREE.CubeGeometry(1,1,1);  	// Add one cube
							var material = new THREE.MeshBasicMaterial( { color: 0x00ff00 } );
							var cube = new THREE.Mesh( geometry, material );
							scene.add( cube );

Demo

voxel.js

  • Game engine based on WebGL

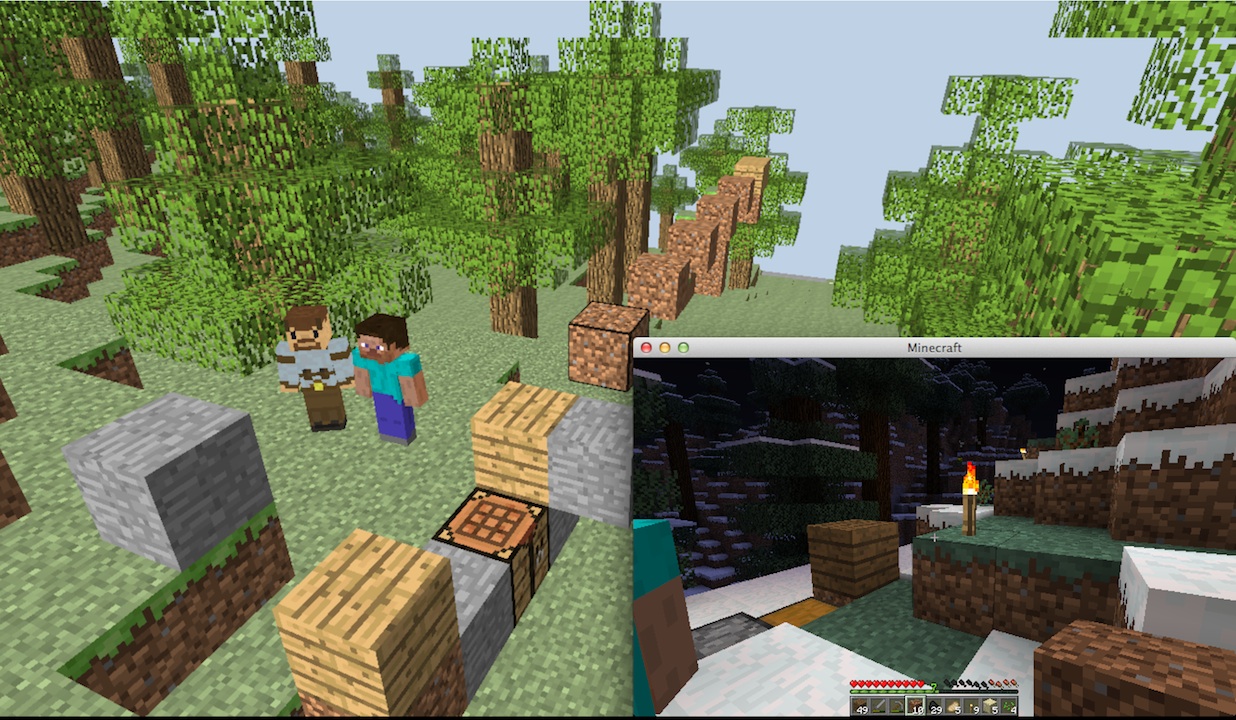

Build your own Minecraft?

http://voxeljs.com/

voxel spider game

http://substack.net/projects/voxel-spider/

							spider.position.y = 200;
							spider.position.x = Math.random() * 300 - 150;
							spider.position.z = Math.random() * 300 - 150;

							spider.on('block', function () { spider.jump() });
							spider.notice(substack, { radius: 500 });

							spider.on('notice', function (player) {
								spider.lookAt(player);
								spider.move(0, 0, 0.5);
							});

Styling

  • CSS3

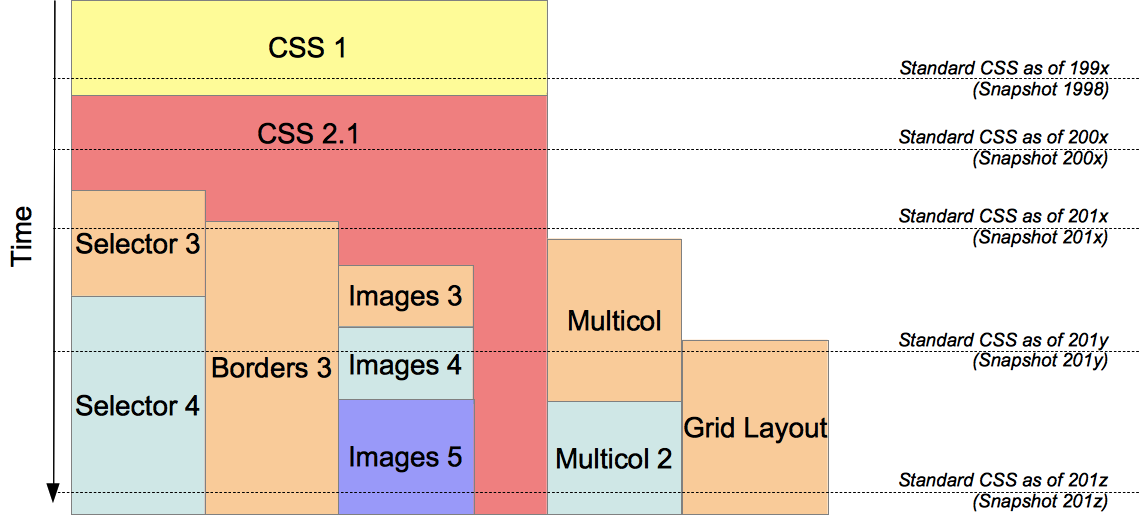

CSS Modules and Snapshots

http://www.w3.org/TR/#tr_CSS

CSS3 Transforms

CSS3 Animations and Transitions

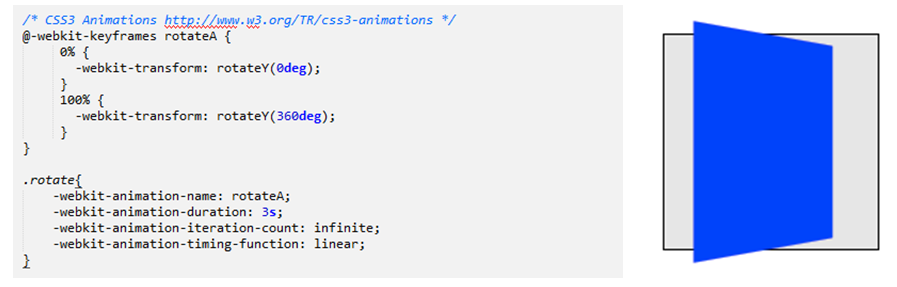

One Animation Example

CSS3 Environment Media Features?

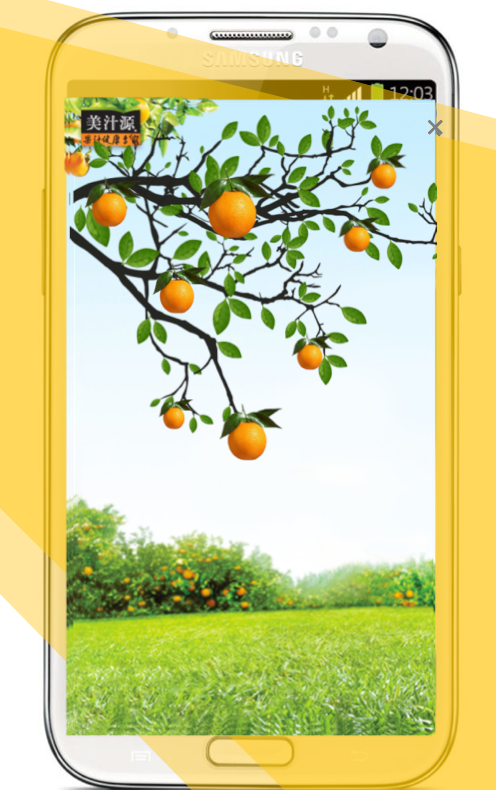

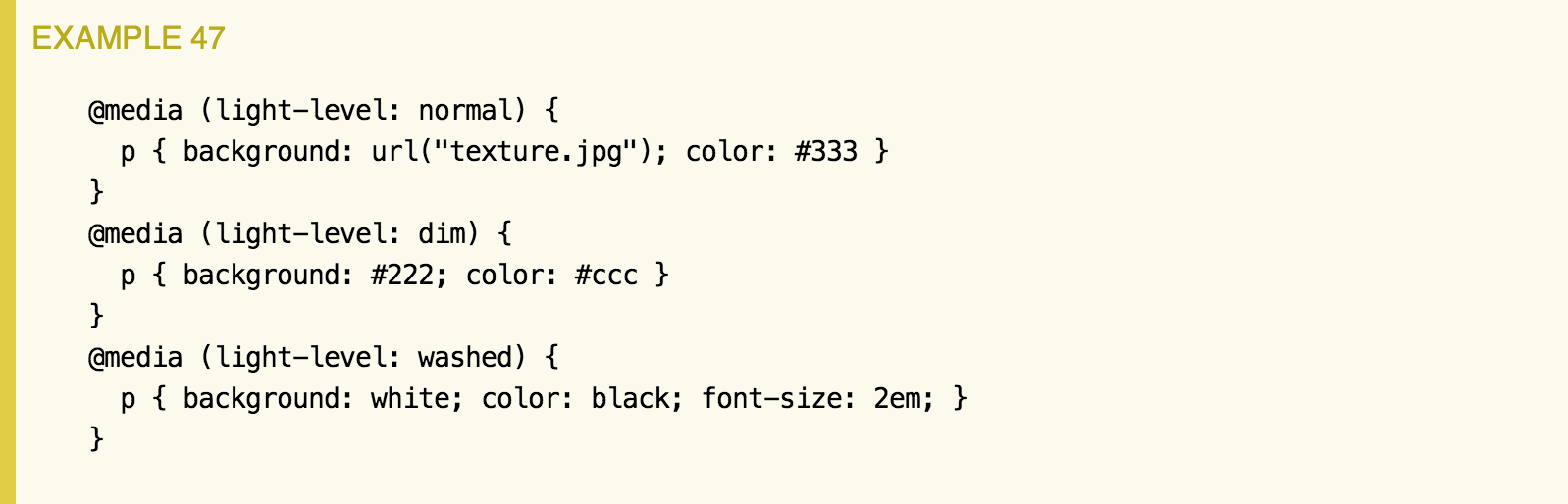

Media Queries Level 4: light-level

http://dev.w3.org/csswg/mediaqueries4/#mf-environment

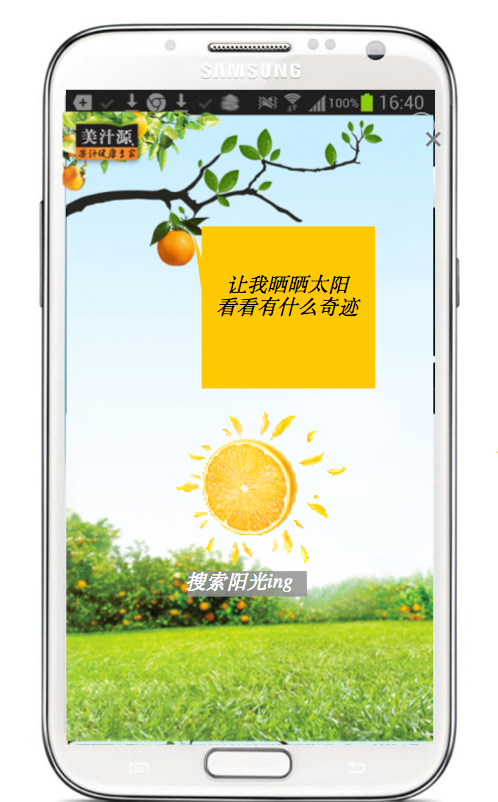

Advertisement by Taobao

Device Access

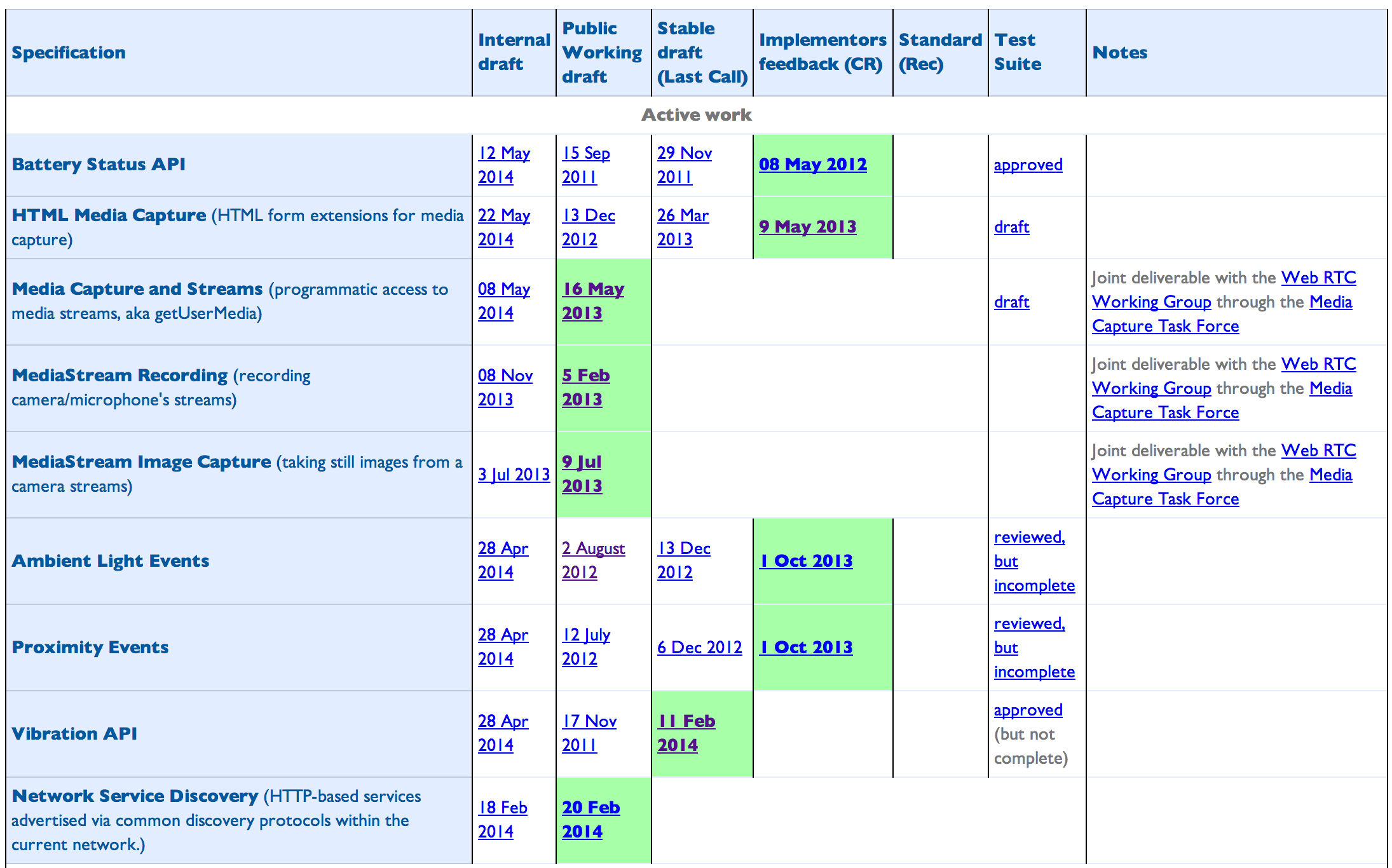

W3C Device API

http://www.w3.org/2009/dap/

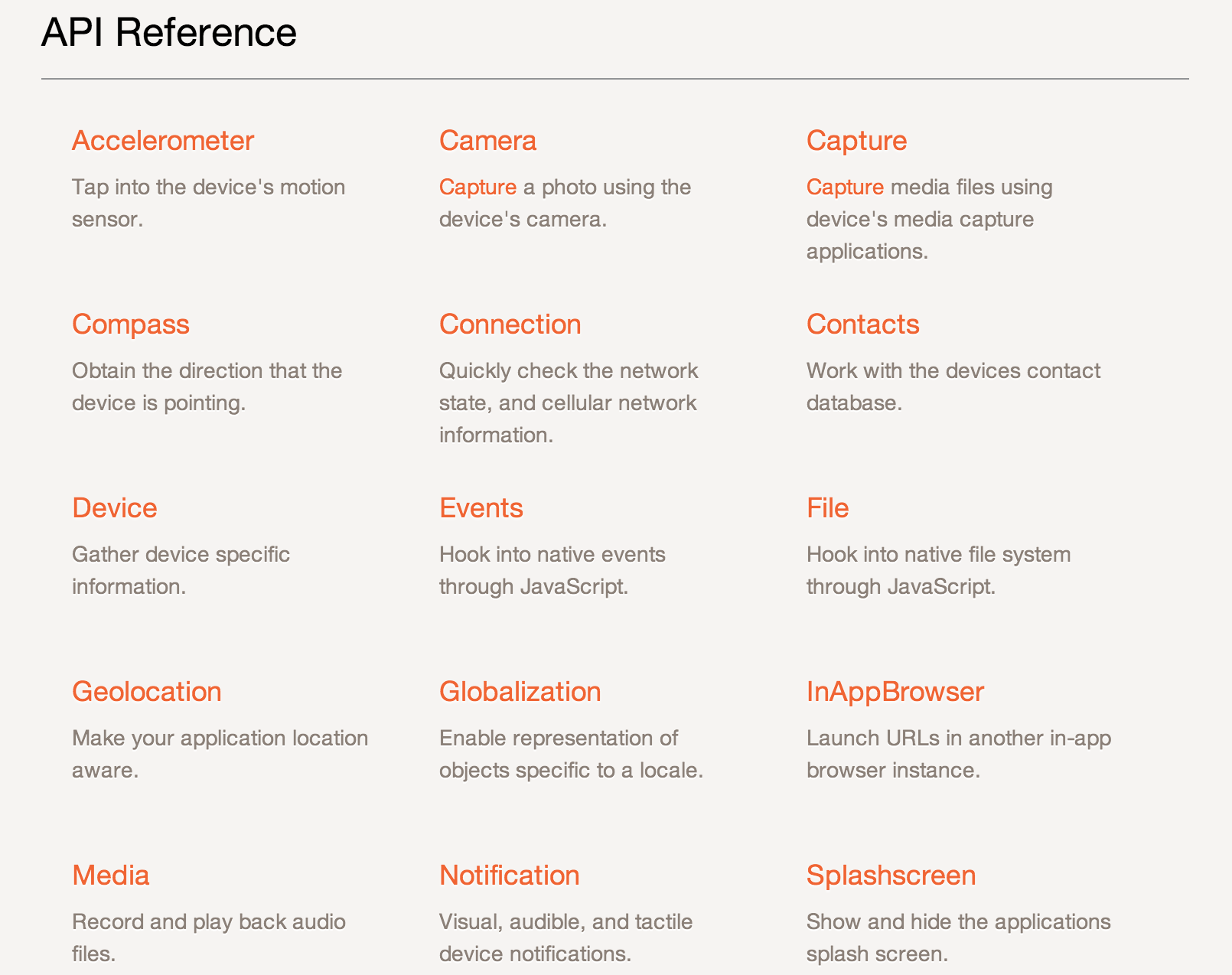

Phonegap

Device Orientation API

Capture Device Orientation


						function eventListener (event) {
						    var alpha = event.alpha;
						    var beta = event.beta;
						    var gamma = event.gamma;
						}
						window.addEventListener('deviceorientation', eventListener, false);

Car Game

Media Capture

  • getUserMedia

Access to user's camera


						function successCallback(stream){
						    video.src = window.URL.createObjectURL(stream);
						}

						function errorCallback(e){
							console.error(e);
						}

						var params = {audio: true, video: true};
						navigator.getUserMedia(params, successCallback, errorCallback);

A Real Case in Tmall

http://www.tmall.com/go/market/main/zhubao.php

Webcam Toy

http://webcamtoy.com/app/

HTML5 Face Tracking

http://shinydemos.com/facekat/

AR with google glass?

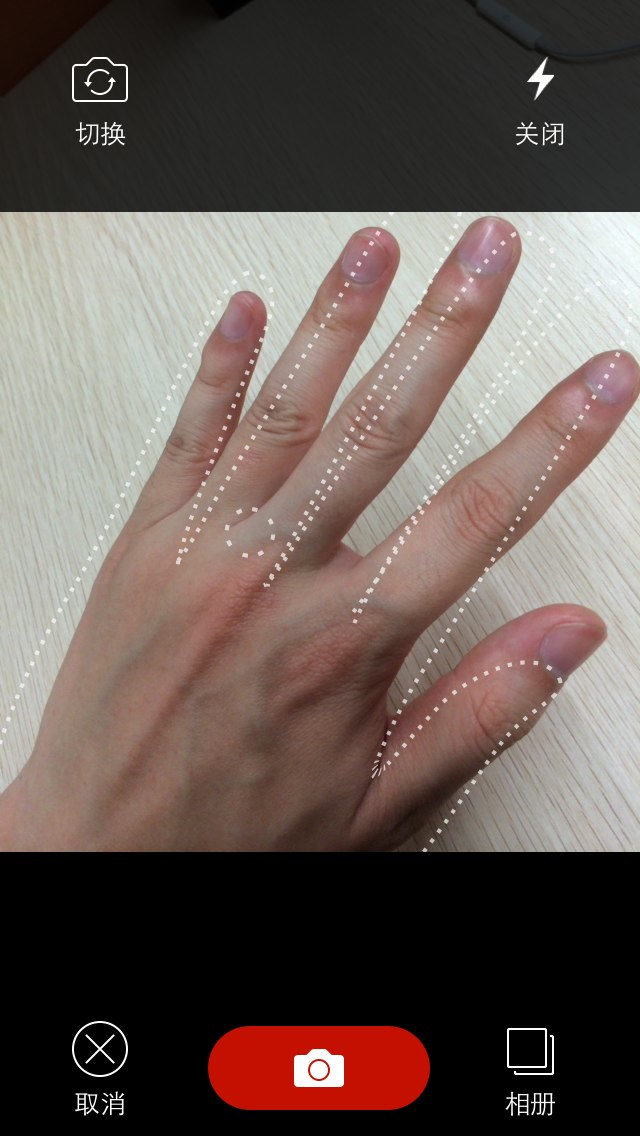

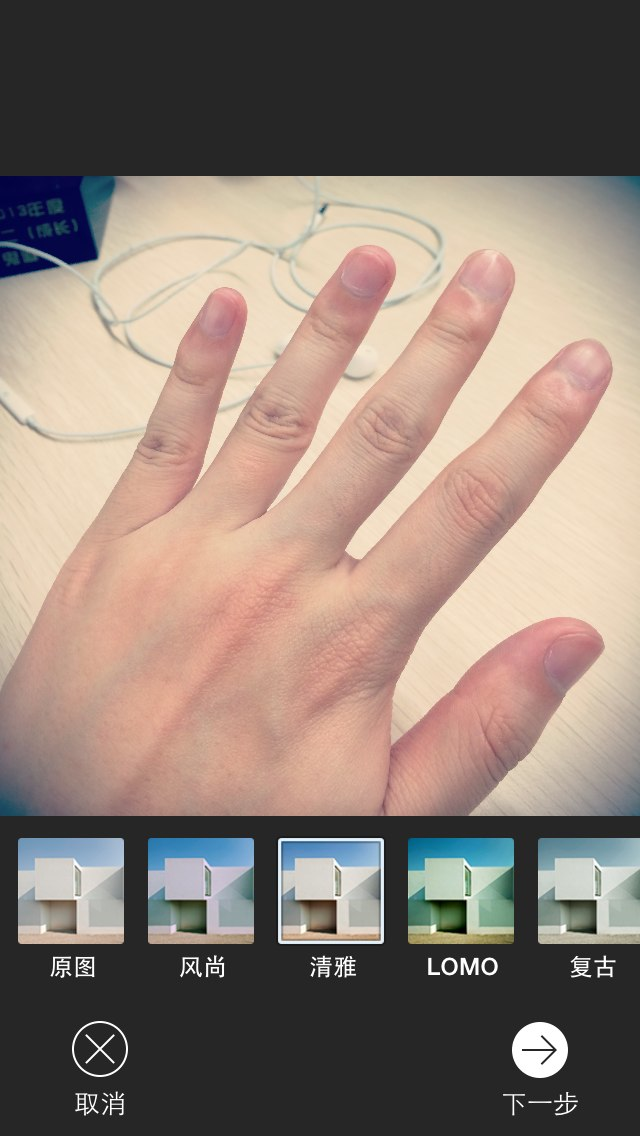

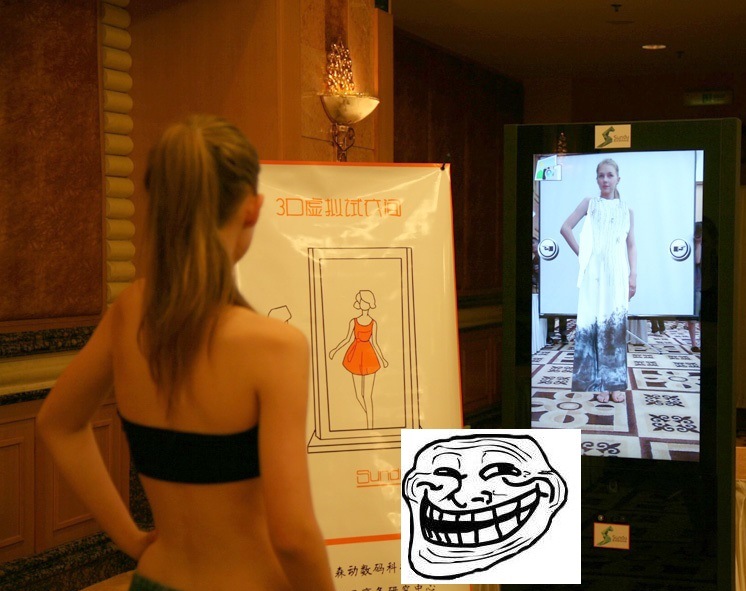

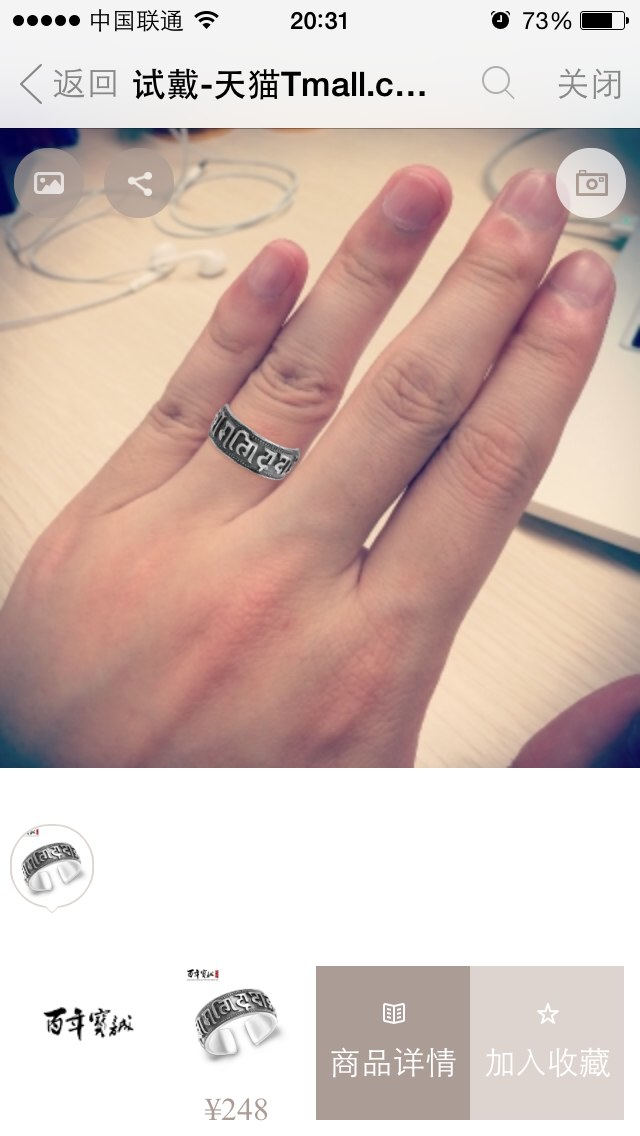

Virtual Fitting Room

Part I Summary

Open Discussion

Revisit

Agenda - Part II

  • Offline & Storage
  • Multimedia
  • Connectivity
  • Performance & Integration

Offline & Storage

  • Application Cache
  • IndexedDB
  • WebStorage
  • ...

Why we need this?

Reactive to Proactive

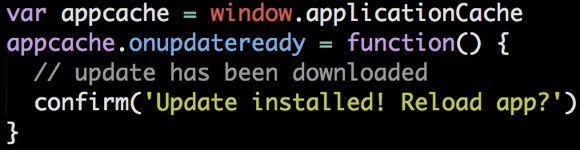

Application Cache

                    	<html manifest="manifest.appcache">
                    	CACHE MANIFEST

						CACHE:
						index.html
						../css/main.css
						../js/lib/ga.js
						../favicon.ico

						FALLBACK:
						/ offline.html

						NETWORK:
						*

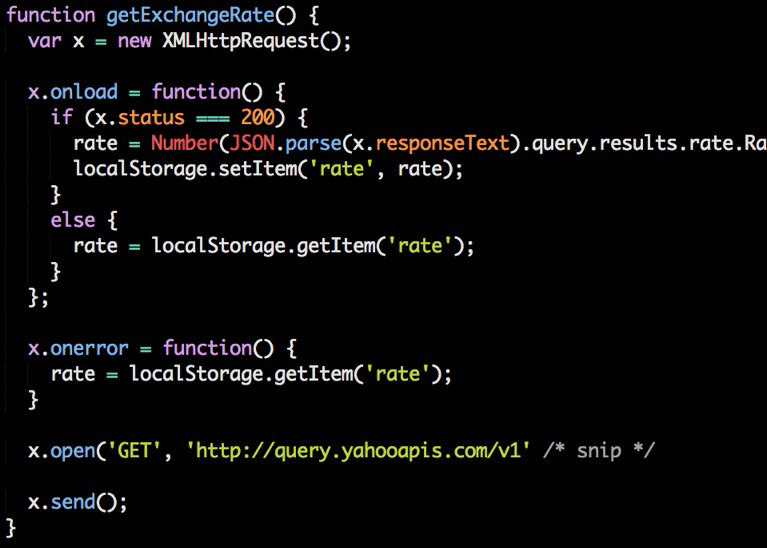

Local Storage

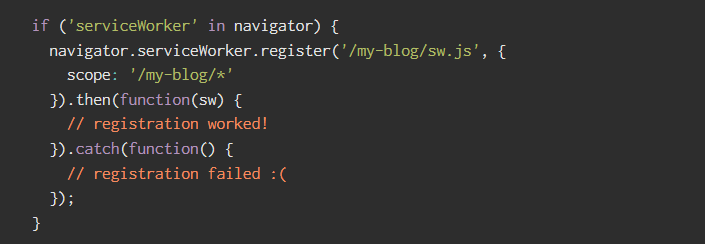

Service Worker

http://jakearchibald.com/2014/service-worker-first-draft/

Multimedia

  • Audio and Video

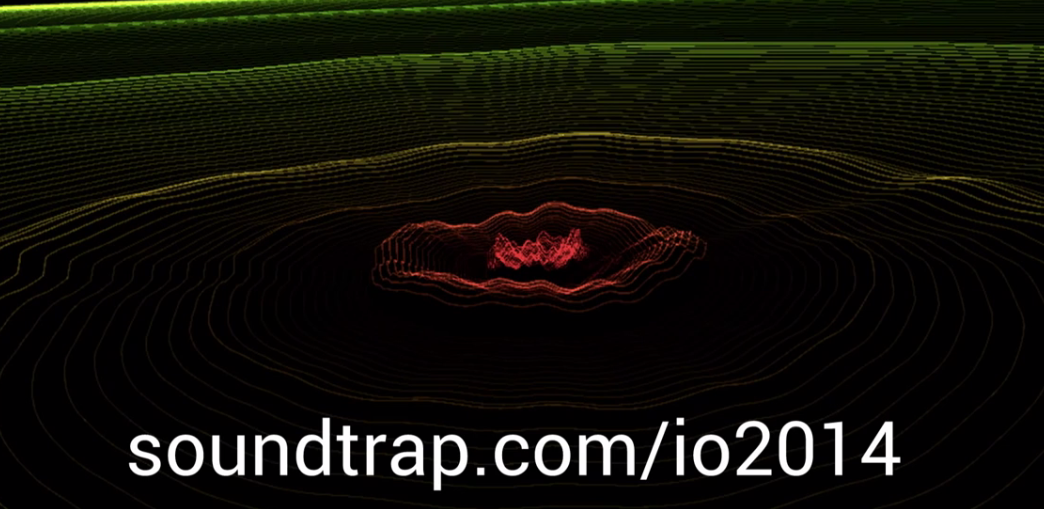

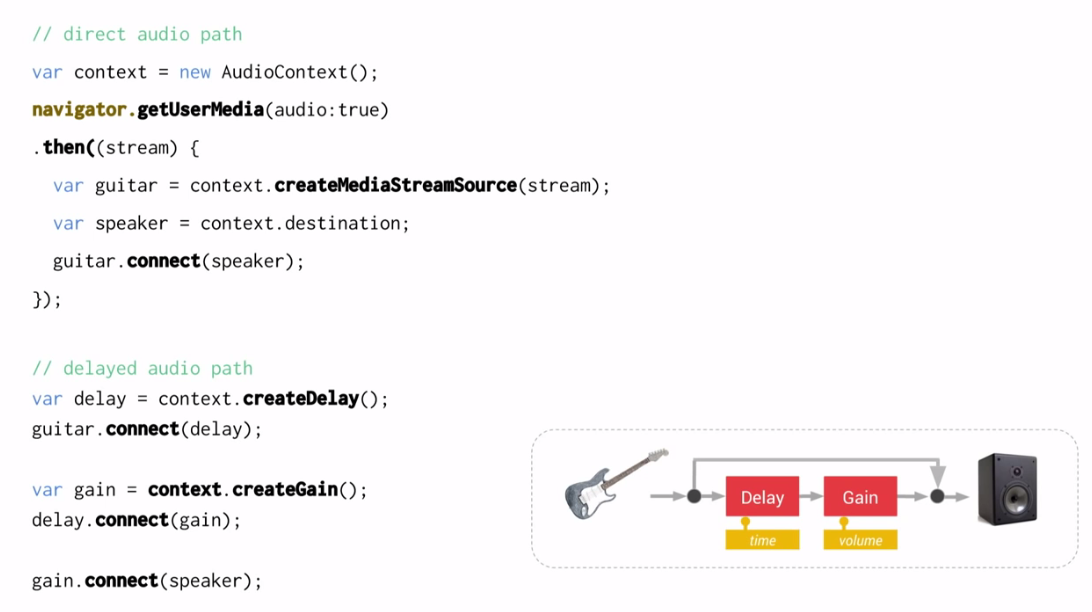

Web Audio

Interactive Audio

http://airtightinteractive.com/demos/js/reactive/

Web Video

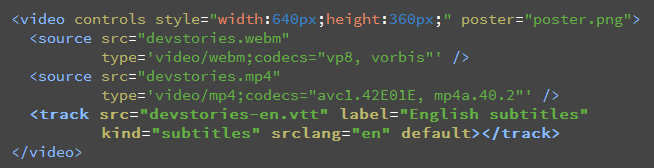

Video Element

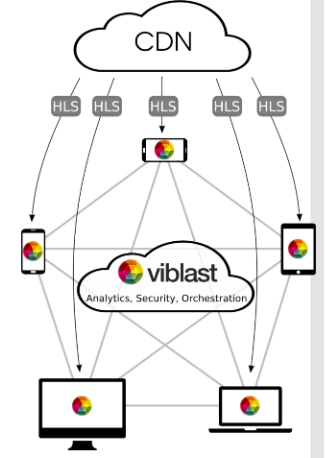

Media Source Extensions

Dash.js

Connectivity

  • WebSocket
  • WebRTC

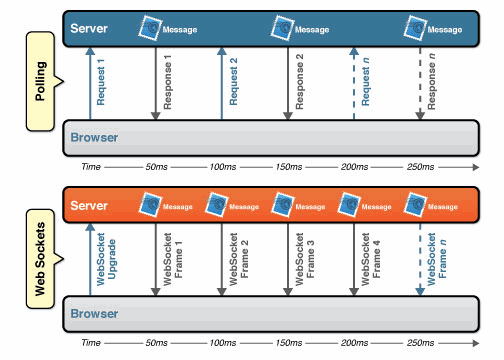

WebSocket: Push instead of Pull

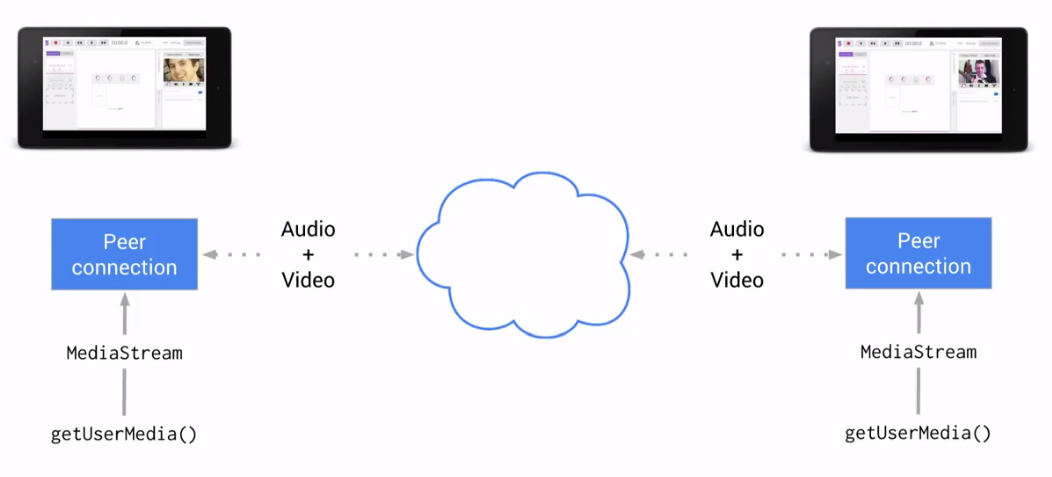

WebRTC

Peer Connection

Data Channel

Performance

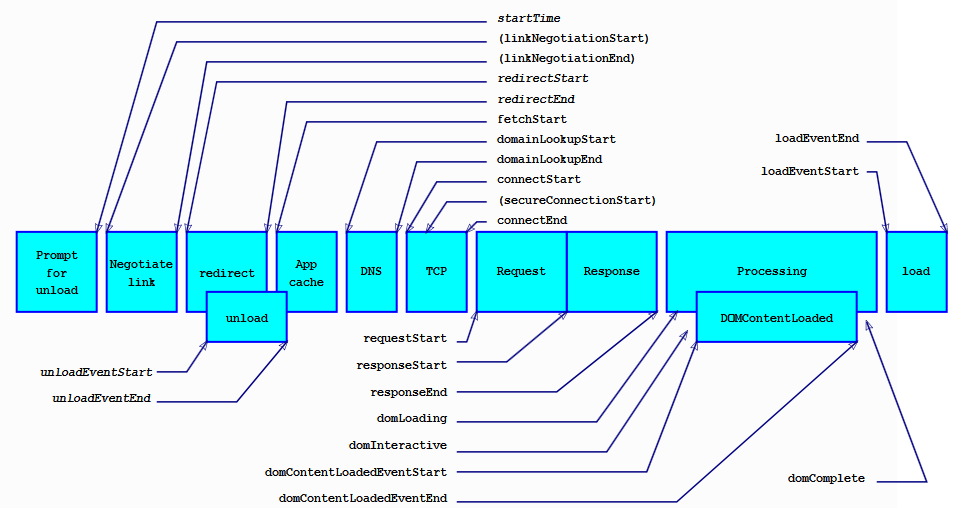

Web Performance Working Group

  • Resource Timing
  • Async Scroll
  • Display Performance

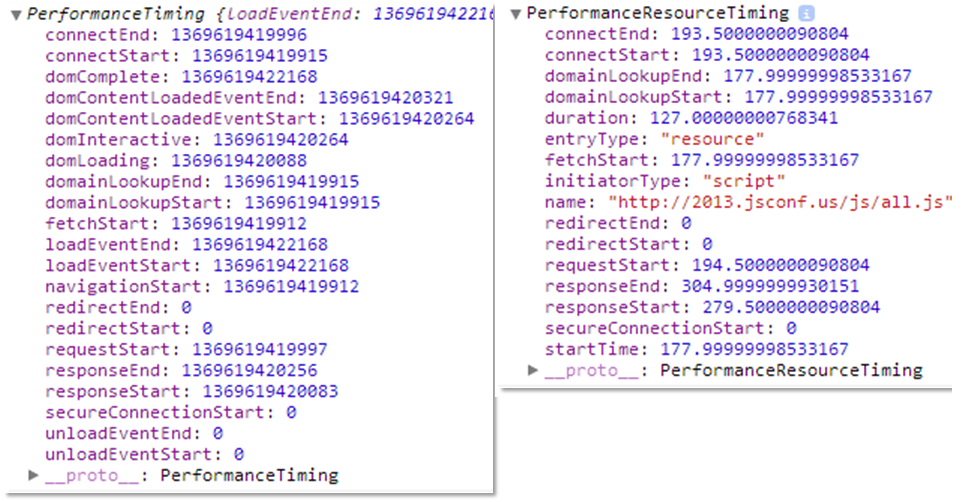

var loadTiming = performance.timing;
var resources = performance.webkitGetEntriesByType("resource");

Part II Summary

Open Discussion
